PLUS SX Master 20″ SIMPLEX Water Filter Housing Only – 1″ Ports

Description

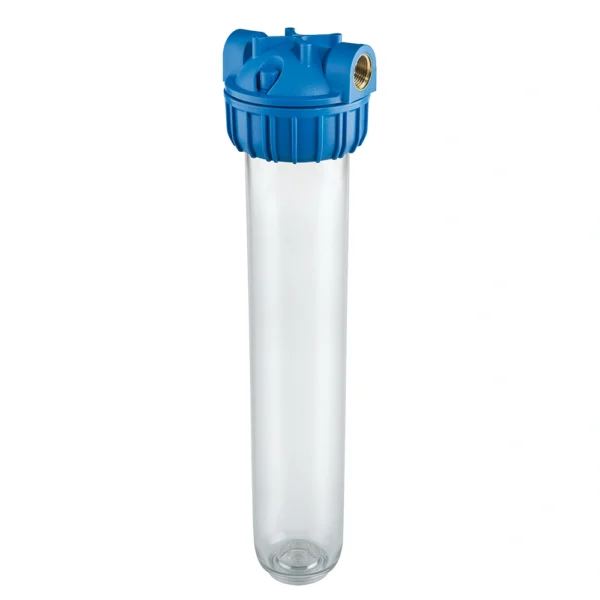

Atlas Filtri SIMPLEX PLUS 3P SX Water Filter Housing 20″

INSTALLATION & USE

RA115T711 – MASTER SIMPLEX PLUS 3P BFO SX TS

Also known as the ‘Master’ Model the 20″ Filter Housing is designed to house any of the 20″ SX filter cartridges.

This PLUS 3P version has a neat collar which makes it easier to lock and unlock the unit creating a more secure seal.

With a Brass BSP thread for longevity this also reduces the risk of cross-threading.

The transparent bowl allows you to see when your filter needs replacing.

CONSTRUCTION

Non-toxic materials, suitable for drinking water
Head and ring nut: reinforced polypropylene
Bowl: PET
O-Ring: EPDM
Breather-valve: body polypropylene, o-ring EPDM
IN/OUT brass threads: CW 614 N brass

APPLICATION LIMITS

Ports: 1″ BSP Female
Max Working Pressure: 8 Bar (116 psi)
Max Working Temperature: 45°C (113°F)
Main Materials: Reinforced PP, PET

Other items you might need:

– Single Wall Bracket for mounting
– Universal Spanner for securely opening and closing the filter housing to change filters
– SX Filters for filtering the water

*THIS DOES NOT COME WITH ANY FILTERS, BRACKETS OR SPANNERS*
