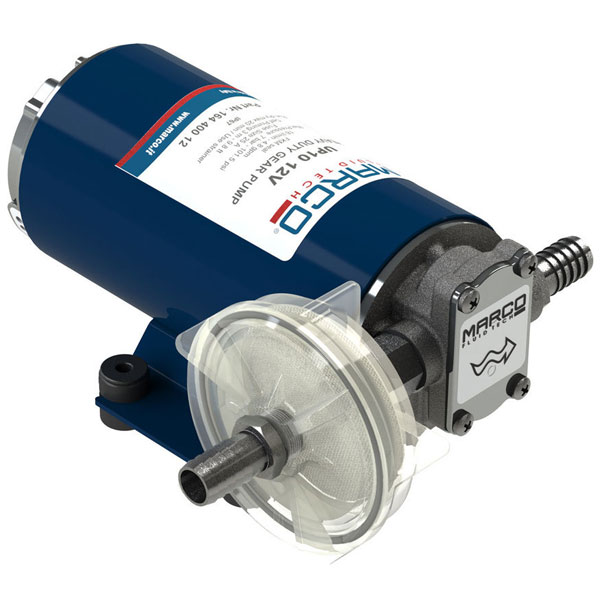

Marco UP10 12V Heavy Duty Pumps

Description

Marco UP10 12V Heavy Duty Pumps

INSTALLATION & USE
Self-priming electric heavy duty pumps for the transfer of liquids of varied nature for discontinuous or intermittent usage. The pumping elements are made up of bronze gears which can possibly even run dry for brief periods. Completely equipped with in-line filter on the inlet side.

There are numerous fields of applications for the pump, however only exclusively with the
allowed liquids mentioned:
– transfer of diesel fuel between tanks, refuelling of tractors and earth moving
equipment
– transfer of water
– transfer of light weight lube oils, antifreeze, etc.

CONSTRUCTION

Code: 164 400 12
Type: UP10
Volt: 12v
Fuse: 25A
Self Priming up to: 3m
Weight: 3.8kg
Ports: 3/8″ BSP

PERFORMANCE RANGE

Max Flow Rate: 18 l/min
Max Pressure: 7 Bar

APPLICATION LIMITS

Fluids Allowed / Not Allowed:

Allowed: Fresh Water (max. 85°C-185°F)
Allowed: Diesel Fuel minimum flashpoint (PM): 55°C-131°F

NOT Allowed: Petrol (Gasoline)
NOT Allowed: Flammable Liquids with PM <131°F
NOT Allowed: Liquids with Viscosity >20 cSt
NOT Allowed: Foodstuff Liquids
NOT Allowed: Corrosive Chemical Products
NOT Allowed: Solvents

Additional information

Weight	3.8 kg
Dimensions	Length: 217 mm Width: 168 mm Height: 108 mm

Performance Data

Downloads

UP10 Datasheet
