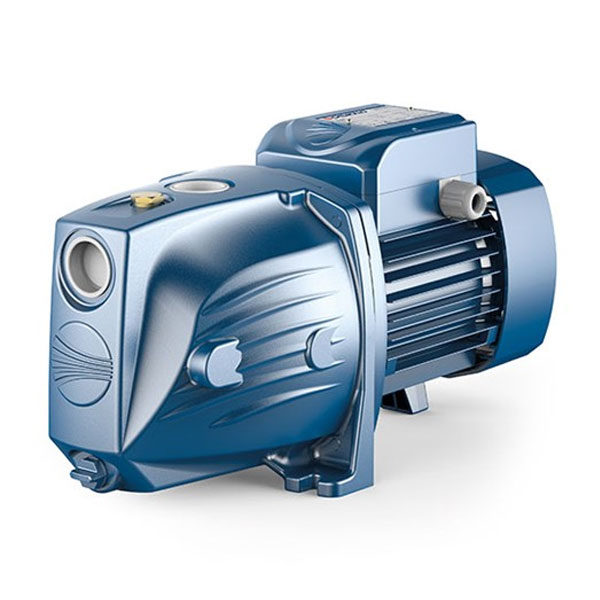

JSW2 Self-Priming “JET” Pumps

Description

JSW2 Self-Priming “JET” Pumps

INSTALLATION & USE

The Pedrollo self-priming JSW pumps are designed to pump water even in cases where air is present. Because of their reliability and the fact that they are easy to use, they are recommended for use in domestic applications such as the distribution of water in combination with small or medium sized pressure tanks, and for the irrigation of gardens and orchards, etc.

Suitable for use with clean water and with liquids that are not chemically aggressive towards the materials from which the pump is made.

We always recommend getting pumps installed by a qualified plumber.
The pump should be installed in an enclosed environment or sheltered from inclement weather.

CONSTRUCTION

Pump Body: Cast Iron, complete with threaded ports in compliance with ISO 228/1
Body Back Plate: Stainless Steel AISI 304
Nozzle Assembly: Noryl FE1520PW
Impeller: Stainless Steel AISI 304
Motor Shaft: Stainless Steel AISI 304 EN 10088-3 – 1.4104
Ports – Inlet & Outlet: 1″ BSP Female

PERFORMANCE RANGE

Flow rate up to  70l/min (4.2 m³/h)
Head up to 58m

APPLICATION LIMITS

– Manometric suction lift up to 9m (HS)
– Liquid temperatures between -10°C and +40°C
– Ambient temperature up to +40°C
– Max working pressure: 6  bar
