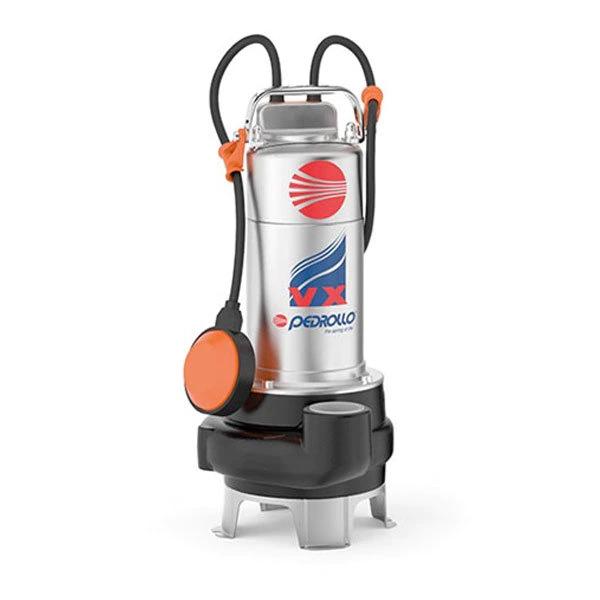

Pedrollo VX “VORTEX” Submersible pumps

Description

Pedrollo VX Submersible pumps

INSTALLATION & USE

The Pedrollo VX Vortex series is suitable for use in domestic, civil and industrial applications where the water, such as groundwater, surface water and sewage water contains suspended solids up to ø 50mm.

They are suitable for use in applications such as for draining flooded areas such as cellars, underground car parks, car washes, for emptying cesspools and sewage disposal. These pumps distinguish themselves for their reliability, which can best be appreciated under automatic operating conditions in fixed installations.

Please note: Three Phase Pumps do not come with a float switch.

CONSTRUCTION

Pump Body: Cast Iron with threaded port in compliance with ISO 228/1
Base: Stainless Steel AISI 304
Impeller: Stainless Steel AISI 304 VORTEX Type
Motor Casing: Stainless Steel AISI 304
Motor Casing Plate: Stainless Steel AISI 304
Motor Shaft: Stainless Steel EN 10088-3 – 1.4104
Port – Outlet VX/35-N: 1’1/2″ BSP Female
Port – Outlet VX/50-N: 2″ BSP Female
Power cable length:
– 5 m for VX8-10/35-N, VX8-10/50-N
– 10 m for VX15/35-N, VX15/50-N
– Float switch for single-phase versions

PERFORMANCE RANGE

Flow rate up to  650l/min (39 m³/h)
Head up to 14m

APPLICATION LIMITS

– 5 m maximum immersion depth
(with a sufficiently long power cable)
– Maximum liquid temperature +40 °C
– Passage of solids:
– up to Ø 40 mm for VX /35-N
– up to Ø 50 mm for VX /50-N
– Minimum immersion depth for continuous service:
– 280 mm for VX /35-N
– 300 mm for VX /50-N

The VXm 10/50 is equivalent to the Grundfos AP50B 50.08, Lowara Domo 15 VX and the DAB Feka 1000MA.

Additional information

Weight	12.9 kg
Dimensions	Length: 243 mm Width: 243 mm Height: 406 mm
Model	VX 8/35N (Manual – No Float), VX 8/35N (Automatic – With Float), VX 10/35N (Manual – No Float), VX 10/35N (Automatic – With Float), VX 10/50N (Manual – No Float), VX 10/50N (Automatic – With Float), VX 15/35N (Manual – No Float), VX 15/35N (Automatic – With Float), VX 8/50N (Manual – No Float), VX 8/50N (Automatic – With Float), VX 15/50N (Manual – No Float), VX 15/50N (Automatic – With Float)
Motor Type	Single Phase, Three Phase

Performance Data

Downloads

VX Range Datasheet
