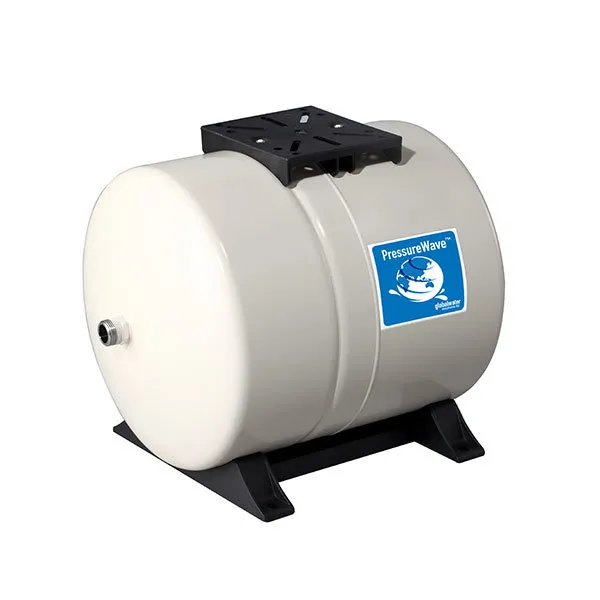

PressureWave Series 20 Litre Horizontal Pressure Vessel

Description

Global Water Solutions PressureWave Series 20 Litre Horizontal Pressure Vessel



INSTALLATION & USE

20 Litre Pressure Vessel for use with Pressure Boosting Sets mainly for Agricultural and Commercial Use

Horizontal ‘Hydrotube’ tanks are supplied with a base unit.

The PressureWave™ Pressure Vessel Series is constructed of a virgin polypropylene liner combined with an FDA approved high grade butyl diaphragm. This is held against the wall of the tank with a steel clench ring. The brass air valve, sealed by a threaded o-ring valve cap, prevents air leaks. Water enters the tank through a patented stainless steel water connection. The diaphragm and liner are both reinforced in specific wear areas for longer life. All internal parts including the air valve are rounded to prevent piercing of the diaphragm in extreme conditions. The water connection uniquely provides a dual water/air seal ensuring a complete leak free and maintenance free pressure vessel.

On the exterior, the almond coloured two part polyurethane paint finish over an epoxy undercoating provides hundreds of hours of UV and salt spray protection.

PressureWave™ tanks are quality tested at several stages on the production line to ensure the structural integrity of every tank.

PressureWave™ tanks represent the best value for the investment and are the best quality pressure vessels available today.

Common Applications:

PressureWave™ tanks are ideally suited for a wide range of applications, including water booster systems, thermal expansion, irrigation systems and hydraulic hammer arresting.

CONSTRUCTION

Single diaphragm design
NSF Standard 61, CE/PED, WRAS, ACS, ISO-9001, Gost, Evrazes approved
Patented stainless steel water connection
Virgin polypropylene liner
Two part polyurethane, epoxy primed paint finish
Leak free, o-ring sealed air valve cap
Comprehensive testing
No maintenance
Standard System Connection: 1″

APPLICATION LIMITS

Tank precharge: 1.9 bar / 28 psi
Maximum working temperature: 90 °C
Maximum working pressure: 10 bar


Additional information

Weight	5.52 kg
Dimensions	Length: 290 mm Width: 290 mm Height: 447 mm
