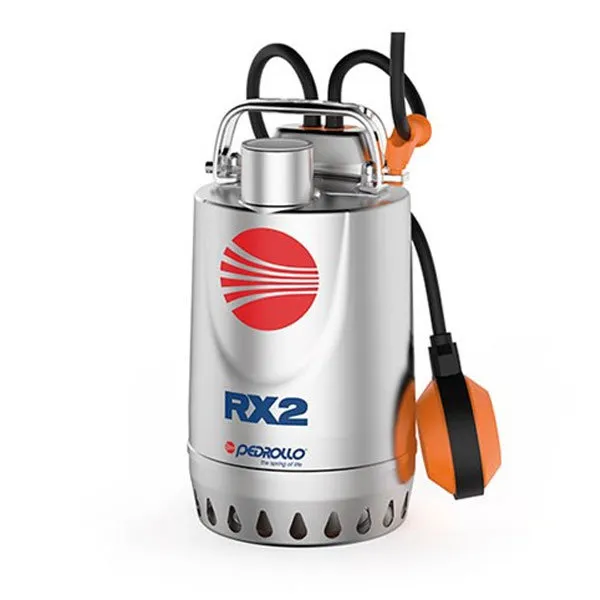

Pedrollo RX Stainless Steel Submersible Drainage Pumps 110V

Description

Pedrollo RX Stainless Steel Submersible Drainage Pumps 110V

INSTALLATION & USE

The RX series pumps are suitable for use with clear water that does not contain abrasive particles.

Innovative design and advanced technology are incorporated into these Pedrollo RX pumps, designed to be easy to use and extremely reliable even when subjected to continuous use (subject to correct installation).

As a result of the design solutions that have been adopted, such as the complete cooling of the motor and the shaft with double seal, these pumps are easy to use and reliable.
They are suitable for use in fixed installations and applications such as draining small flooded areas (rooms, cellars, garages) in the event of an emergency, for the disposal of waste water in the home (from dishwashers, washing machines) and for emptying drainage traps.

Typical Applications

Draining flooded areas (basements/cellars, garages, driveways etc.) emptying swimming pools, tanks and aquariums, waste household water disposal (dishwashers, washing machines), supplying garden fountains, small scale irrigation for gardens in general from collection tanks and emptying sump pits.

110V Note – Please ensure that your power supply cable is large enough and as short as possible to ensure significant voltage reaches the motor.

CONSTRUCTION

Pump Body: Stainless steel AISI 304 with threaded port in compliance with ISO 228/1
Suction Filter: Stainless steel AISI 304
Diffuser: Stainless steel AISI 304
Impeller: Stainless steel AISI 304
Motor Casing: Stainless steel AISI 304
Motor Casing Plate: Stainless Steel AISI 304
Motor Shaft: Stainless steel EN 10088-3 – 1.4104
Power supply: 110V
Port:
1’1/4″ RX1,2.3
1’1/2″ RX4,5

Supplied with Hose Connector with Union (Hosetail): ø 35mm

The pumps are complete with:
– 5 m long power cable for RX 1-2-3
– 10 m long power cable for RX 4-5
– float switch for single-phase versions

PERFORMANCE RANGE

Flow rate up to  300 l/min (18 m³/h)
Head up to 20m

APPLICATION LIMITS

Immersion Depth: 10m (with a sufficiently long power cable)
Maximum liquid temperature: 50 °C (maximum liquid temperature 90 °C for a maximum of 3 minutes of intermittent service)
Passage of suspended solids up to ø 10mm
Suction level;
– 14 mm above ground level for RX 1-2-3
– 25 mm above ground level for RX 4-5
Continuous Service S1
