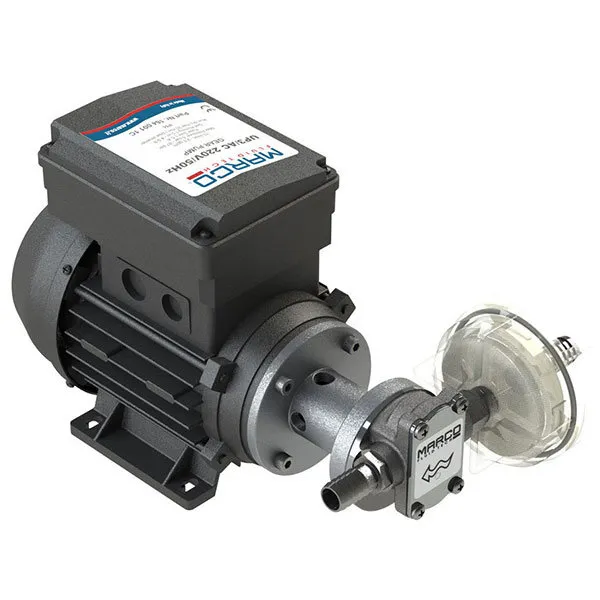

Marco UP3/AC Gear Pump 220V

Description

UP3/AC 220V Gear pump

INSTALLATION & USE

Self-priming electric pump for transferring diesel and viscous liquids. Brass gears, pump body and connections in nickel-plated brass, shaft in stainless steel. Seal in FKM and O-ring in NBR.

There are numerous fields of application for this pump, however only exclusively with the allowed liquids mentioned:
– transfer of diesel between tanks, refuelling of tractors and earth moving equipment
– transfer of water
– transfer of lightweight lube oils, antifreeze etc.

CONSTRUCTION

Code: 1640011C
Type: UP3/AC
Volt: 230V-50Hz
Consumption: 0.8A
Fuse: 2A
Self Priming up to: 1.5m
Motor Power: 150W
Ports: 3/8″ BSP

PERFORMANCE RANGE

Max Flow Rate: 10 l/min
Max Pressure: 6 Bar

APPLICATION LIMITS

Fluids Allowed / Not Allowed:

Allowed: Fresh Water (max. 40°C-104°F)
Allowed: Diesel Fuel minimum flashpoint (PM): 55°C-131°F

NOT Allowed: Petrol (Gasoline)
NOT Allowed: Flammable Liquids with PM <131°F
NOT Allowed: Liquids with Viscosity >20 cSt
NOT Allowed: Foodstuff Liquids
NOT Allowed: Corrosive Chemical Products
NOT Allowed: Solvents

Temperature: Min -10°C / max 60°C
Relative Humidity: max. 90°C
